╤                Dual Inon Z-240 Strobe Test
with Sea & Sea TTL Controller
 (click here for version with smaller 240-pixel wide images)

Camera:  Nikon D200 with Nikkor 12-24mm f/4 DX AF-S Zoom

Housing:  Sea & Sea DX200, Ext. Ring 40, Athena OPD-170 dome

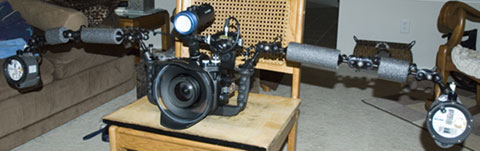

Strobes:  Dual Inon Z240s connected to Sea & Sea TTL Controller

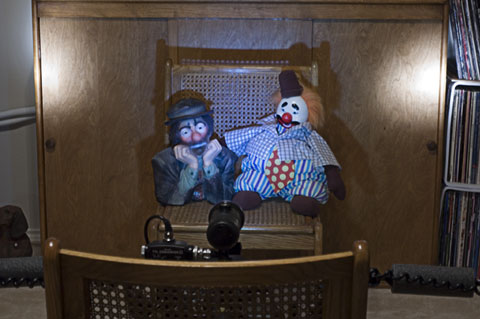

Strobe Spread:  2 ft. head center to dome center

Subject Distance:  4 ft.

ISO:  100                   Exposure Metering:  Matrix

Z240 & TTL Controller Settings:

  • TTL:   Main Mode to S-TTL,  Advanced Cancel Circuit switch down and locked (TTL Auto), EV Controller to TTL, S&S TTL Controller set from -1 to +1 as desired.


  • Manual :  Main Mode to M (-.5 to -6), ACC switch down and locked, EV Controller as needed for -.5 to -6 EV, or switch Main Mode to FULL, S&S TTL Controller to Manual

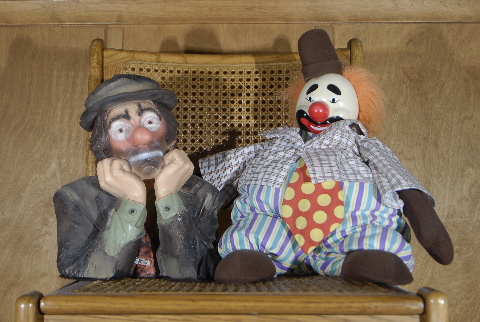

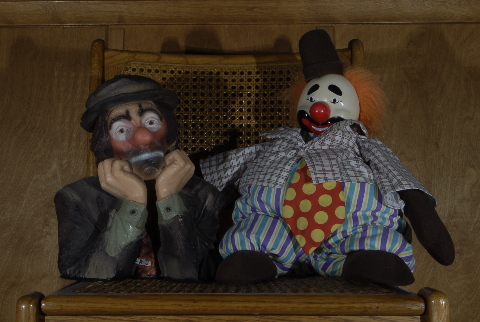

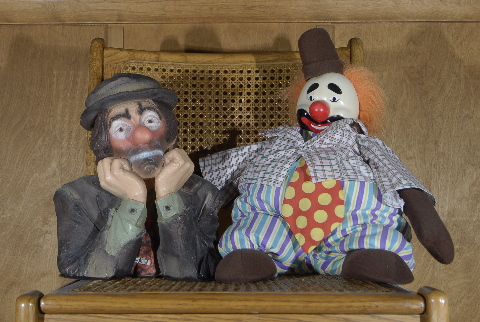

Normal TTL Control with S&S TTL Controller at 0 EV, Aperture Priority Mode, 1/60 sync

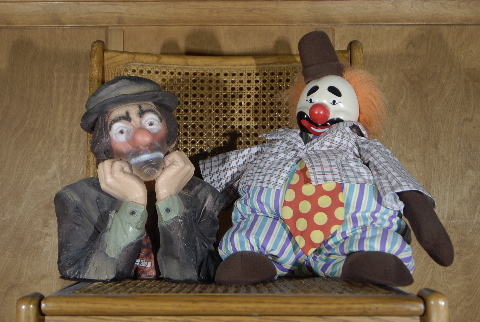

f4 f5.6
f8 f11
f16 f22

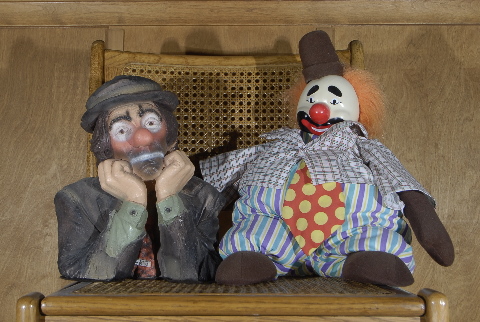

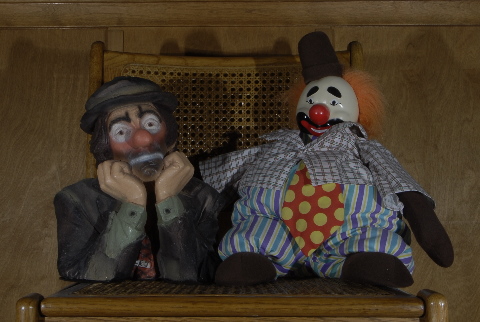

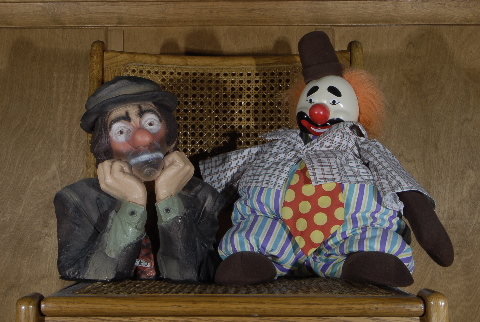

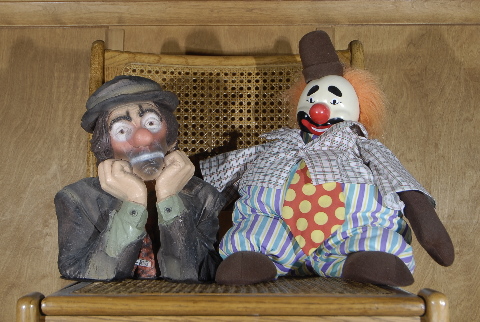

TTL repeated on Manual Mode, 1/250 synch - As expected, same light balance as at 1/60 sync
f4 f5.6
f8 f11
f16 f22

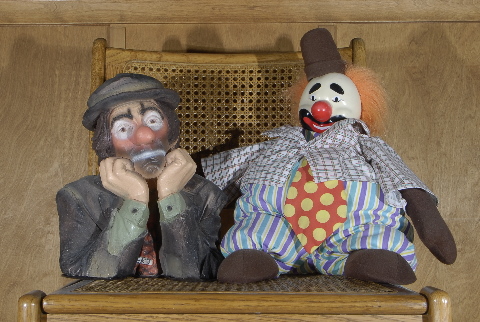

TTL repeated on Manual Mode, 1/125 synch, f/11 - TTL Controller varied from -1 to +1 EV
-1 -0.7
-0.3 0
+0.3 +0.7
+1.0

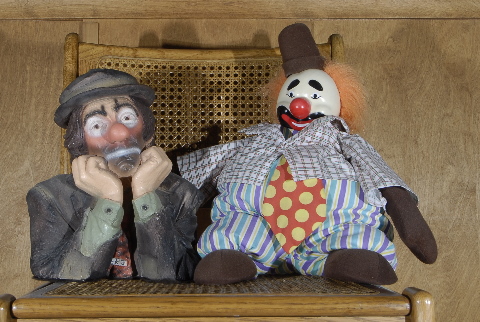

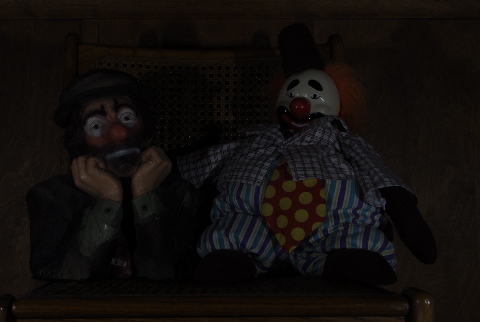

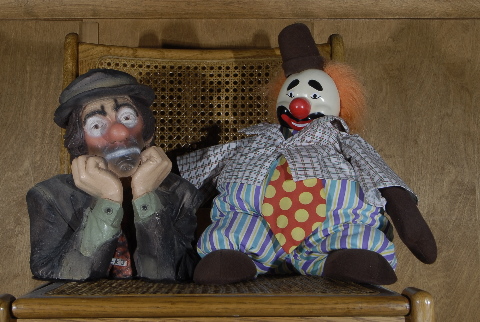

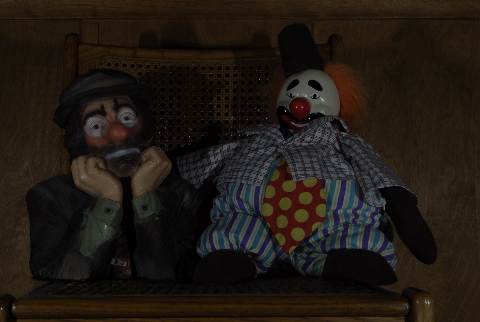

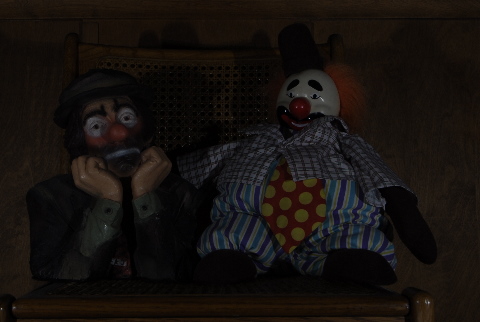

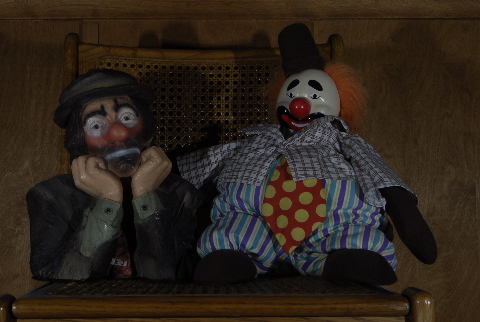

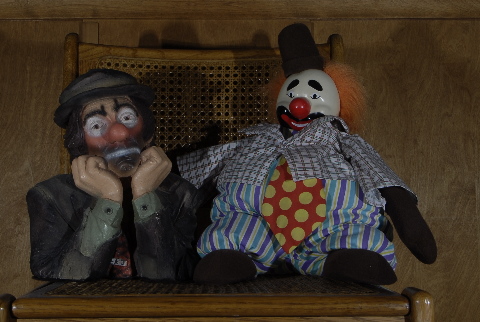

Manual Flash Mode, 1/250 synch, f/11 - Z240 EV Controller from -6.0 to 0 in 0.5 EV steps

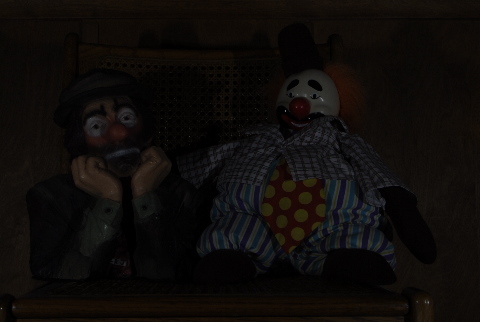

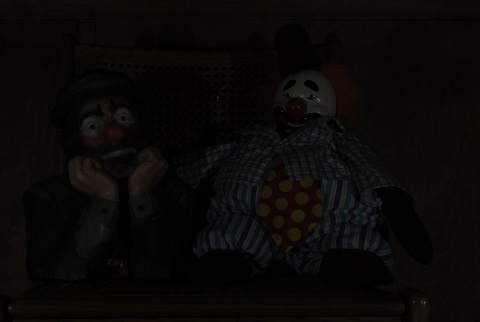

-6.0 -5.5
-5.0 -4.5
-4.0 -3.5
-3.0 -2.5
-2.0 -1.5
-1.0 -0.5

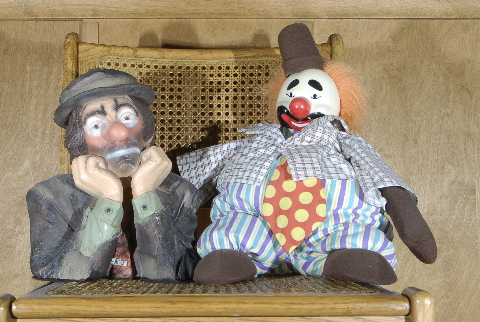

0.0 Z240 Full Power obtained upon setting Main Mode to FULL,
EV Controller then ignored.  ACC locked down.
